Specifications

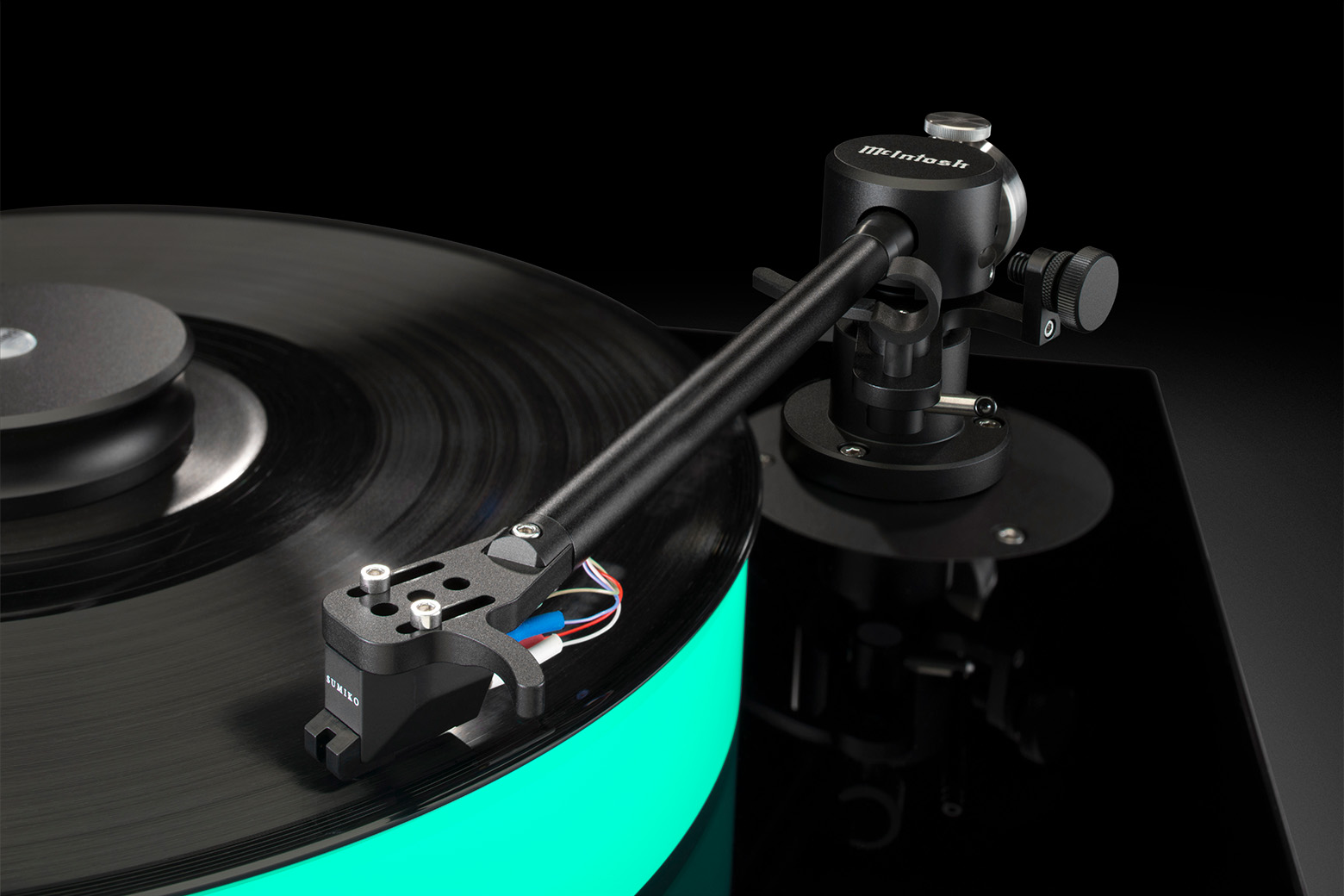

Cartridge Specifications

Cartridge Type
Moving Magnet

Output Level
2.5 mV at 5 cm/s

Load Impedance
47K Ohms recommended (Preamp MM Input)

Frequency Response
12Hz to 35kHz

Channel Separation
30dB at 1kHz

Compliance
12 x 10-6 cm/dyne

Recommended Tracking Force
2.0 g

Channel Difference
Less than 0.5dB at 1kHz

Total Mass
6.5 g

Stylus
Extended Line Contact

Cantilever Material
Aluminum

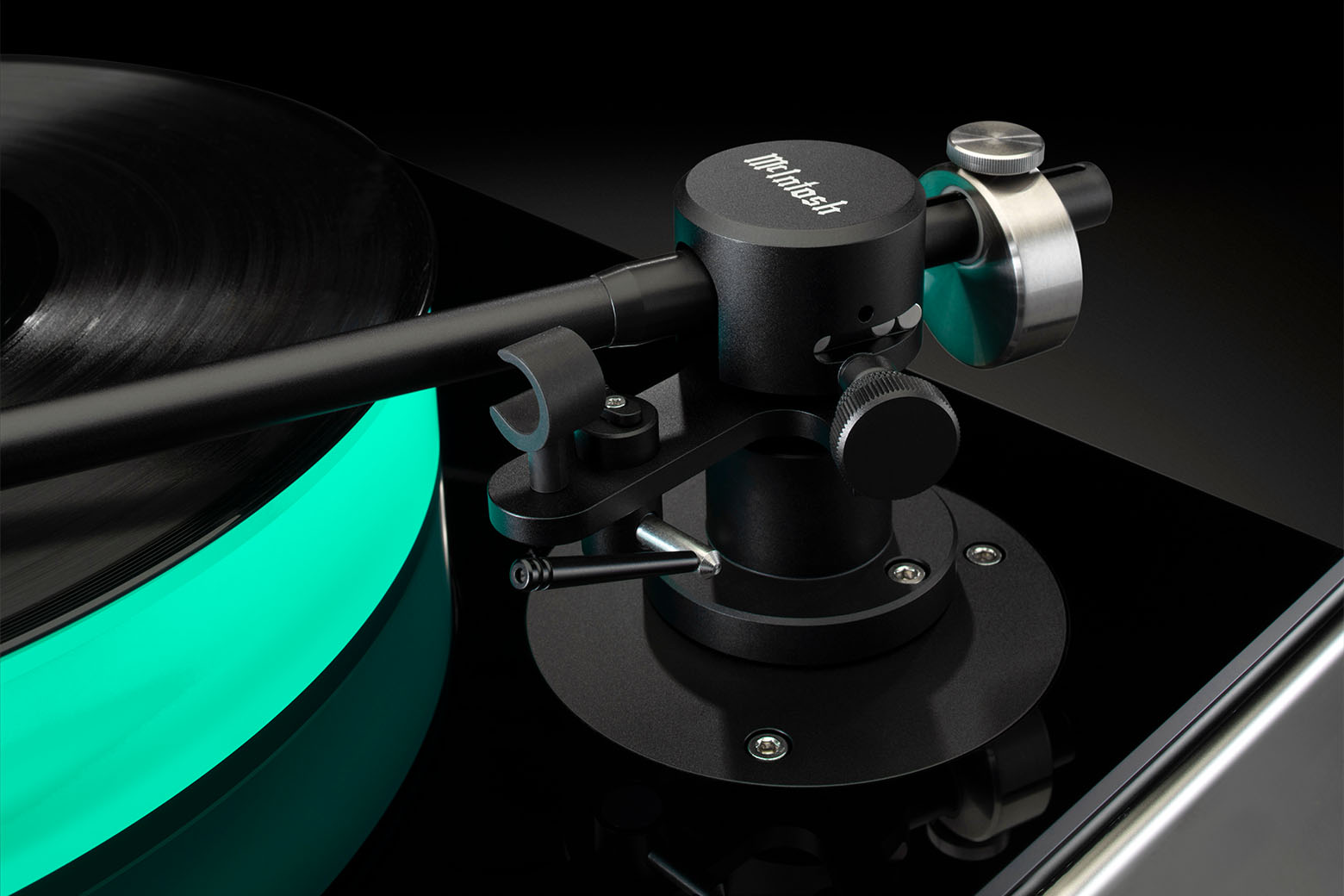

Tonearm Specifications

Bearing
Magnetic Sapphire and Ceramic

Arm Tube
Dural-Aluminum

Counterweight
Eccentric

Adjustments
Vertical Tracking Angle, Antiskate, Azimuth

Turntable Specifications

Playback Speeds
33-1/3, 45 and 78 rpm

Motor Type
DC Motor with Stainless Steel Brushes

Speed Control
Servo System

Platter
Silicon Acrylic

Platter Bearing
Magnetic Suspended Ceramic

Signal To Noise Ratio
36dB - 41dB

Wow & Flutter
0.15% - 0.20%

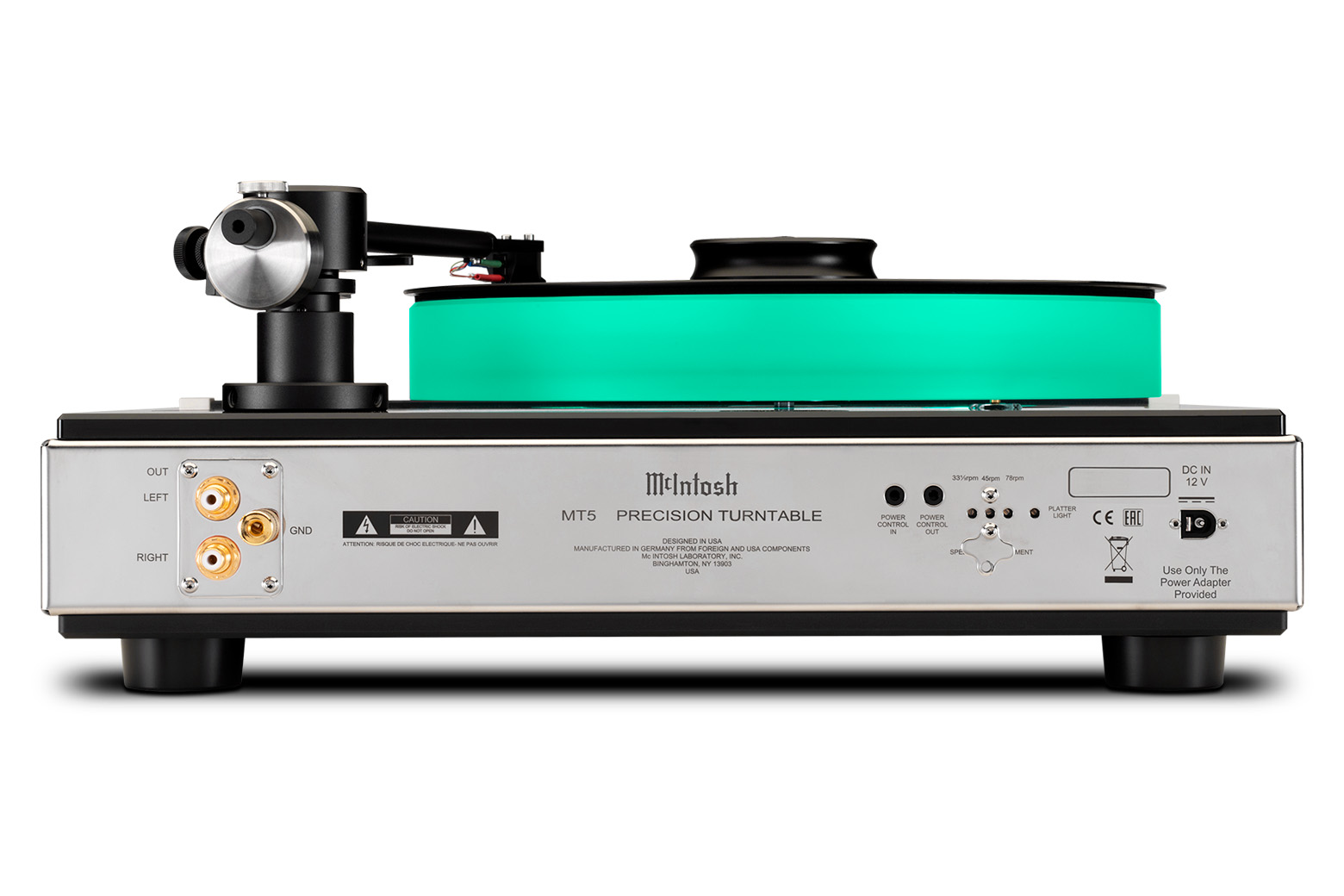

Connectivit
Stereo Outputs Unbalanced
1

Control
Power Control Input
1

Power Control Output
1

Platter Light
Yes

Speed Control Fine Adjustment
Yes

General Specifications

Dust Cover Included
Yes

Weights & Dimensions

Unit Dimensions (W x H x D)
17-1/2" (44.45cm) x 7" (17.8cm) (7-1/2" (19.0cm) with dust cover) x 17" (43.18cm)
Note: Tone Arm Height will vary depending on the type of Cartridge installed.

Unit Weight
31.5 lbs (14.3 kg)
Shipping Weight
38 lbs (17.2 kg)
