自己寻找到了一组组装八爪鱼单元的照片
1. Applying glue to inner gluing land
2. Applying activator to hub suspension

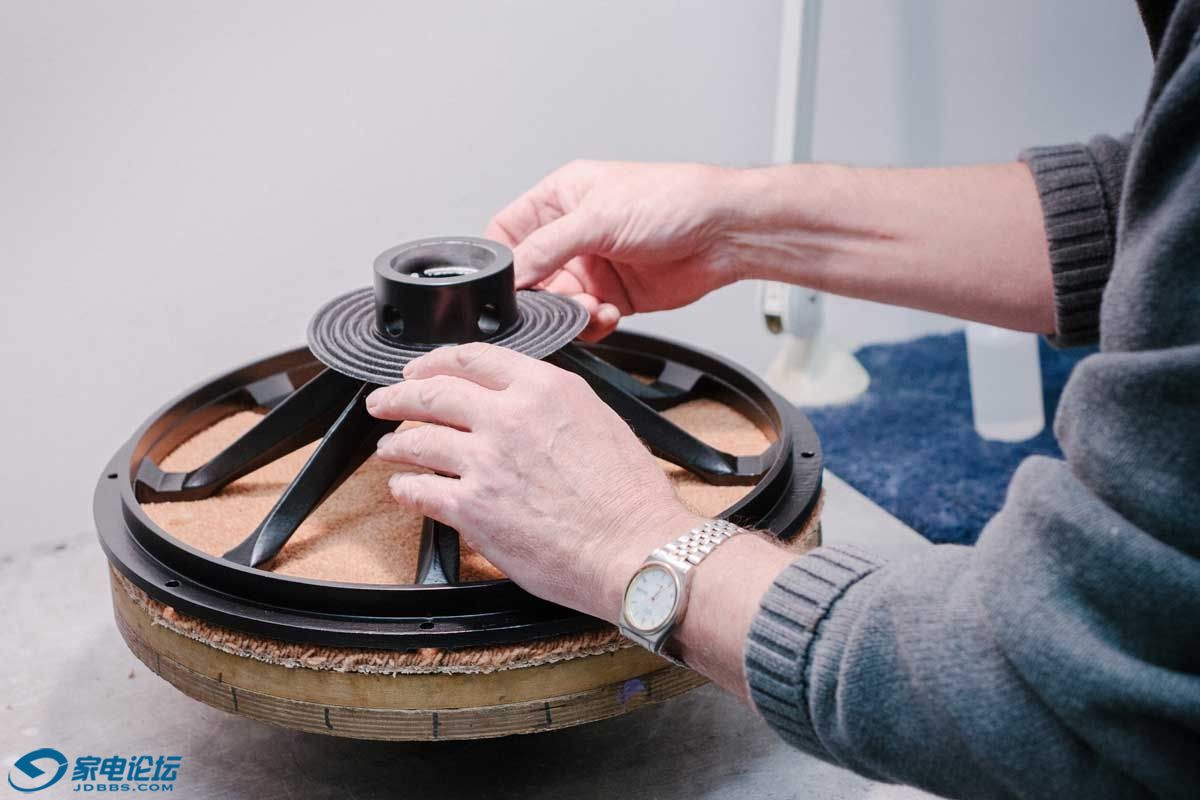

3. Postioning of hub suspension on chassis
4. Applying weight to hub suspension
5. Jig for positioning of cone/voice coil assembly
6. Applying glue to hub suspension
7. Applying glue to chassis
8. Inserting shim to centre voice coil
9. Positioning cone/voice coil assembly onto chassis
10. Removal of centering shim and jig
11. Positioning magnet assembly on turntable
12. Applying glue to rear suspension gluing land
13. Lowering cone/chassis assembly onto magnet
14. Inserting bolt through chassis hub
15. Tightening bolt to correct torque
16. Applying pressure to rear suspension glue joint
17. Fitting bung
18. The final bung!
19. Finished unit
20. Off to be tested!
|
