LINN Akurate(精确）2200 后级功放 Dynamik动力电源（已出）

guhuozai · 发表于 2016-11-29 21:48

马上注册家电论坛，众多有奖活动等你来参与！

您需要登录才可以下载或查看，没有账号？注册

x

本帖最后由 guhuozai 于 2017-7-13 20:40 编辑

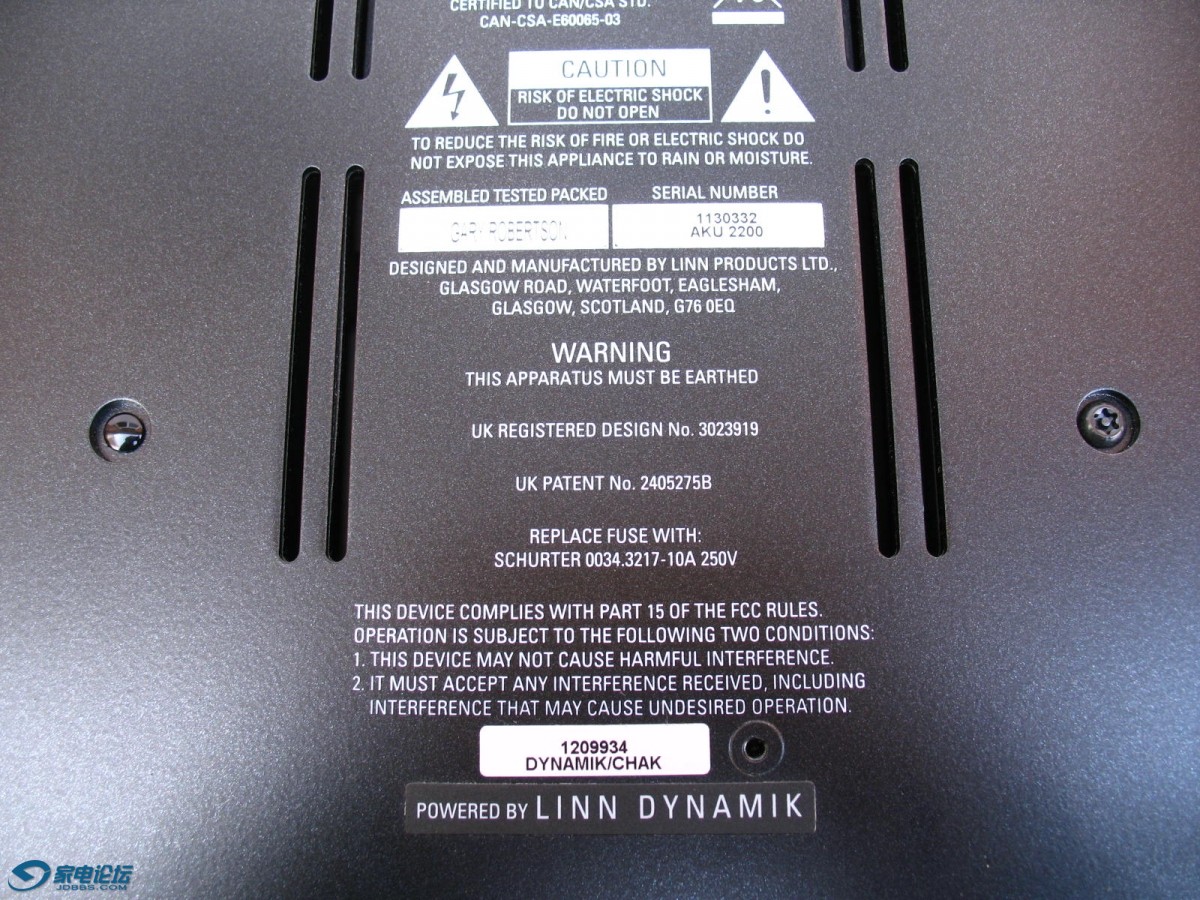

Dynamik动力电源，原装无修摩，成色近全新！原包装、电源线，4欧200W，8欧111w。。。0元北京自提优先13311059879（微信）淘宝：https://item.taobao.com/item.htm ... zSW&id=542541802383

guhuozai · 发表于 2016-12-3 21:45

继续出

guhuozai · 发表于 2016-12-8 22:19

继续出

guhuozai · 发表于 2016-12-20 00:05

继续出

guhuozai · 发表于 2016-12-21 22:18

继续出

guhuozai · 发表于 2016-12-23 16:39

继续出

guhuozai · 发表于 2017-1-15 13:55

guhuozai · 发表于 2017-3-16 20:29

继续出

器乐迷 · 发表于 2017-3-16 23:03

估计好重！大概多少公斤？

guhuozai · 发表于 2017-3-18 23:33

器乐迷发表于 2017-3-16 23:03
估计好重！大概多少公斤？

因为是开关电源设计，倒不是很重，2200是6.4公斤
AKURATE power amplifier range

2200

3200

4200

Dimensions
(H) 91 mm x (W) 380 mm x (D) 380 mm
(H) 3.58 inches x (W) 15 inches x (D) 15 inches

Weight
6.4 kg / 14.1 lbs
8.2 kg / 18.1 lbs
8.3 kg / 18.3 lbs
Mains supply voltage
(auto-ranging)
100 – 120 V ac (±10%) 50 – 60 Hz
200 – 240 V ac (±10%) 50 – 60 Hz
100 – 120 V ac (±10%) 50 – 60 Hz
200 – 240 V ac (±10%) 50 – 60 Hz
100 – 120 V ac (±10%) 50 – 60 Hz
200 – 240 V ac (±10%) 50 – 60 Hz

Fuse
250 V, T 10 A
250 V, T 10 A
250 V, T 10 A

Input power - sleep mode (Phono models)
16 W
19 W
20 W

Input power - sleep mode (Balanced models)
17.5 W
19.5 W
22 W

Input power - maximum (continuous)
300 W
300 W
300 W

Maximum output power
(per channel)
200 W rms into 4 Ω
111 W rms into 8 Ω
200 W rms into 4 Ω
111 W rms into 8 Ω
200 W rms into 4 Ω
111 W rms into 8 Ω

Input connectors (Phono models)
RCA
Phono
RCA
Phono
RCA
Phono

Input connectors (Balanced models)
XLR
XLR
XLR

Output connectors
4 mm banana / binding post
4 mm banana / binding post
4 mm banana / binding post

Gain settings (Phono models)
(Adjustable for A ktiv (dB))
25.6, 26.6, 27.6, 28.6*, 29.6, 30.6, 31.6, 32.6 (* indicates default setting)
25.6, 26.6, 27.6, 28.6*, 29.6, 30.6, 31.6, 32.6 (* indicates default setting)
25.6, 26.6, 27.6, 28.6*, 29.6, 30.6, 31.6, 32.6 (* indicates default setting)
Gain settings (Balanced models)
(Adjustable for A ktiv (dB))
19.6, 20.6, 21.6, 22.6*, 23.6, 24.6, 25.6, 26.6 (* indicates default setting)
19.6, 20.6, 21.6, 22.6*, 23.6, 24.6, 25.6, 26.6 (* indicates default setting)
19.6, 20.6, 21.6, 22.6*, 23.6, 24.6, 25.6, 26.6 (* indicates default setting)

Input impedance (Phono models)
7.5 K Ω
7.5 K Ω
7.5 K Ω

Input impedance (Balanced models)
7.8 K Ω
7.8 K Ω
7.8 K Ω

Input level for clipping (Phono models)
1.1 V rms
1.1 V rms
1.1 V rms

Input level for clipping (Balanced models)
2.2 V rms
2.2 V rms
2.2 V rms
Harmonic distortion
< 0.005 %
< 0.005 %
< 0.005 %
Load tolerance
Unconditionally stable into all loudspeaker loads
Unconditionally stable into all loudspeaker loads
Unconditionally stable into all loudspeaker loads

Frequency response
1.4 Hz to 41 kHz
1.4 Hz to 41 kHz
1.4 Hz to 41 kHz
Peak output voltage
41 V
41 V
41 V
Finishes
Silver, Black
