出成色一流的天朗DC6LCR中置

xw2039 · 发表于 2016-7-6 23:37

马上注册家电论坛，众多有奖活动等你来参与！

您需要登录才可以下载或查看，没有账号？注册

x

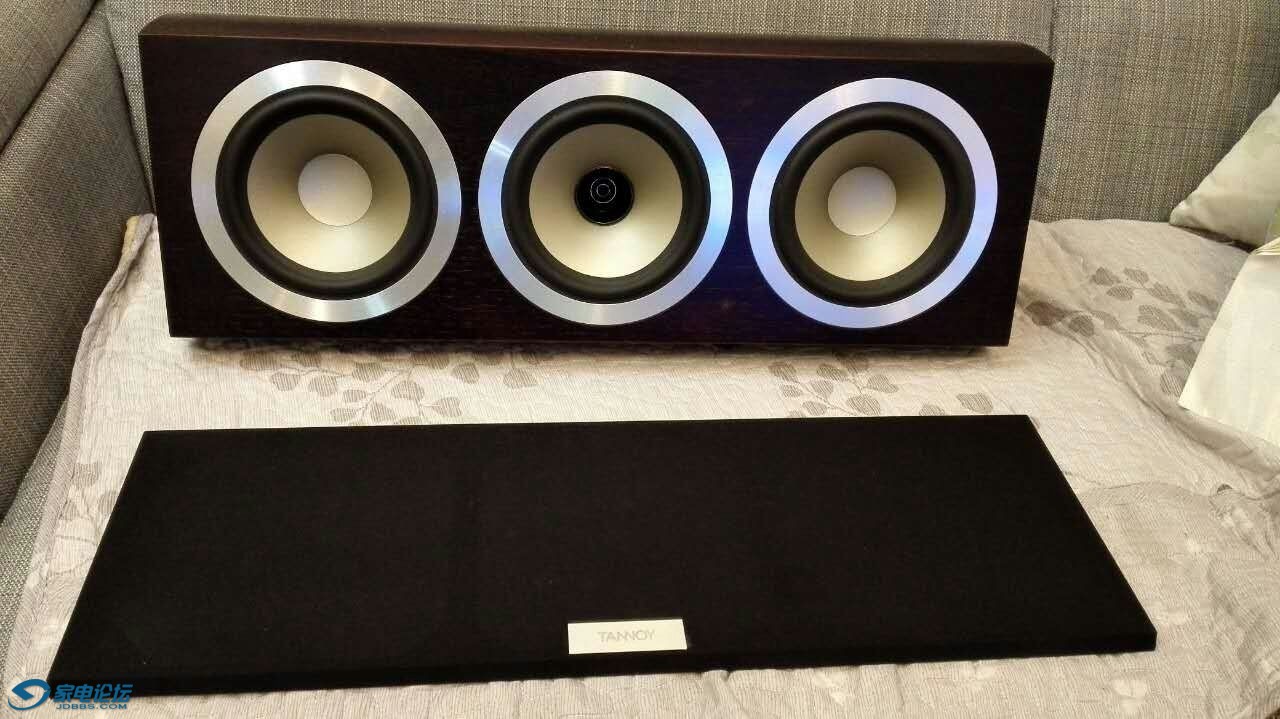

本来不太在意中置，但现在高清电影，蓝光多起来了，DTS音乐也多起来，故中置的需求比原来大了很多，反倒是中置的级别要高于主箱才好。我基本确定升级更高级别的中置，故出掉现在的中置，我的中置是天朗革命系统，主箱是Revolution DC6T,中置则是DC6LCR，6寸同轴，都是大昌行货，9成新，原包装都在，全新要1万多。我的5500出掉，QQ 411632913，手机 18721860259，此中置具体参数如下：
PERFORMANCE
Recommended amplifier power：20 - 175 Watts RMS
Continuous power handling：87 Watts RMS
Peak power handling：350 Watts
Sensitivity：89dB (2.83V @ 1m)
Nominal impedance：8 Ohms
Frequency response：34Hz - 35kHz (-6dB)
Dispersion：90 degrees conical

DRIVE UNIT
Dual Concentric? high frequency：25mm (1.00”) titanium dome with Tulip WaveGuide?
Dual Concentric?：low frequency 150mm (6.00”) treated paper pulp cone with rubber surround and 44mm (1.75”) edge wound voice coil
Bass driver：150mm (6.00”) treated paper pulp cone with rubber surround and 44mm (1.75”) edge wound voice coil
Passive radiator：150mm (6.00”) treated paper pulp cone with rubber surround

CROSSOVER
Crossover frequency：1.7kHz
Crossover type：Passive low loss 2nd order LF, 1st order HF

CONSTRUCTION
Enclosure type：Passive radiator ported
Volume“18.4L 0.650 cu. ft.
Dimensions：
226 x 600 x 225mm (H x W x D ex. grille)
8.90 x 23.62 x 8.86” (H x W x D ex. grille)
Weight：12.2kg
Finish：Light oak and Espresso
