PHILIPS CDM-1 /3 /4 /9 PRO转盘 玩家俱乐部 !

jyec

cdm4除了俗称cdm4pro的cdm4/36和俗称cdm4ind的cdm4/53是霍尔电机外,还有cdm4/11、cdm4/25等cdm1mk2变种是霍尔电机的

乐林8t

交易区新帖推荐

飞利浦、马兰士台机型号资料:
PHILIPS......vs......Marantz.........................................雷射
頭...................D/A 晶片
LHH-
2000......................................................................CDM
0 ??....................TDA 1540 或 1541??
LHH-1000.............CD-12...............................................CDM
1....................TDA 1541 S1/每一聲道
...............................CD-
7............................................CDM 12.3....................TDA
1541 S1/每一聲道
LHH-900....................................................................CDM
4 pro....................TDA 1547/每一聲道
LHH-800R.............CD-11?? or CD-15??..................CDM 4
pro....................TDA 1547/每一聲道
LHH-700...............CD-15??........................................CDM 4
pro....................TDA 1547/每一聲道
LHH-600B.............CD-11 MKII (沒有平衡輸出端子)..CDM 4
pro....................TDA 1547/每一聲道
LHH-500............... (有平衡輸出端子)......................CDM 4
pro....................TDA 1547
LHH-500R.............CD-16 (沒有平衡輸出端子)......CDM 4
pro....................TDA 1547(LHH-500R)....TDA 1547/每一聲道(cd-16)
.................................CD-16D (有平衡輸出端子)..........CDM
12.1....................TDA 1547/每一聲道
LHH-
300R......................................................................CDM
9....................TDA 1547
LHH-
300B......................................................................CDM
4 Pro.................TDA 1547
LHH-
300........................................................................CDM
4 Pro.................TDA 1547
LHH-200RX................................................................CDM
9....................TDA 1547
LHH-
200R....................................................................CDM
9....................TDA 1547
LHH-
100.........................................................................CDM
9....................TDA 1547


Philips vs Marantz對照表:

PHILIPS......vs......Marantz..........................雷射
頭...................D/A 晶片
LHH-2000.....................................................CDM 0/1都
有.......TDA 1540陶瓷x2
LHH-1000.............CD-12...............................CDM
1.................TDA 1541 S1/x1
.............................. .CD-7.............................CDM
1252...........TDA 1541 S2 (T)/x2
LHH-900R.......................................................CDM 4
pro...........DAC7(S) /x2
(DAC7=TDA1547+SAA7350)
LHH-800R......................................................CDM 4
pro...........DAC7(S) /x2
.............................CD-15................................CDM 4
pro...........DAC7(S) /x2+HDAM
LHH-700..............CD-11.............................. .CDM 4
pro............DAC7 /x2
LHH-600B...........CD-11 MKII (None XLR).CDM 4 pro..........DAC7 /x2
LHH-500............... (有平衡輸出端子)..........CDM 4 pro........... SAA7321x2
...........................CD-16SE (None XLR).... CDM 4
pro...........DAC7 /x2+HDAM
LHH-500R......................................................CDM 4
pro...........DAC7 /x2
..............................CD-16F (None XLR)……CDM 4 pro...........DAC7/x2
LHH-300B........... CD-10............................. .CDM 4
Pro...........SAA7321/x2
LHH-300..............CD-10............................. ..CDM 4
Pro...........SAA7321/x2
LHH-300R......................................................CDM
9..............DAC7/x2
LHH-200RX....................................................CDM
9..............DAC7/x2
LHH-200R............................................... .......CDM
9..............DAC7/x2
LHH-100.........................................................CDM
9......... ... DAC7/x2

PHILIPS...vs....Marantz等級對照表:

PHILIPS......vs......Marantz...............................yan:
LHH-2000................None.............................1,600,000
LHH-1000………..CD-12.............................. 600,000
LHH-900/800..........CD-7................................450,000
LHH700FT………CD-15...............................380,000/390,000
LHH-700...............CD-11.............................. .330,000
LHH-600B............CD-11 MKII (None XLR).280,000
LHH-500............... None..................................250,000
LHH-500RFT.......CD-16SE (None XLR).... 250,000/240,000
LHH-500R............. None................................220,000
LHH-300/300B.....CD-10 /CD-16F................150000/160,000
LHH-300..............CD-10 /CD-16F.................150000/160,000
LHH-300R.............. None................................150,000
LHH-200RX
LHH-200R
LHH-100

Philips系音質排名參考
LHH2000>LHH900R>MICRO CD-M100>LHH1000(M/CD-12)>
LHH800R> M/CD15>M/CD7>MICRO CD-M2000>
MICRO CD-M2DC> LHH700FT> LHH700(CD11)>
M/CD99SEF LTD>MICRO CD-M2>
LHH500FT>LHH600>LHH500>M/CD16SEF>LHH500RFT> LHH500R>CD16>LHH300/300B

173168

我有飞800R想出. 还是220V.一手自用.

[ 本帖最后由 173168 于 2007-11-13 10:54 编辑 ]

yyh70

好机啊，出了换不回同价位的音源哦。

xiaoshen

LHH系列一般是100V和220-240V，谁有220V的，贴个图来，让大家开开眼

[ 本帖最后由 xiaoshen 于 2010-9-1 03:09 编辑 ]

讲求人道

交易区新帖推荐

谁有CDM-1?

求一个

Jackwinner

哪位同学有CDM4/19的伺服电路图，想求一份，给点米也可，想自己做一个CD转盘！
我的E-mail是：whz0331@hotmail.com

【音乐人】

原帖由 xiaoshen 于 2008-2-11 16:26 发表
LHH系列根本没有220V的,吹牛都不会吹!!!!!!!!!!!!!

井底之蛙~~~~

jyec

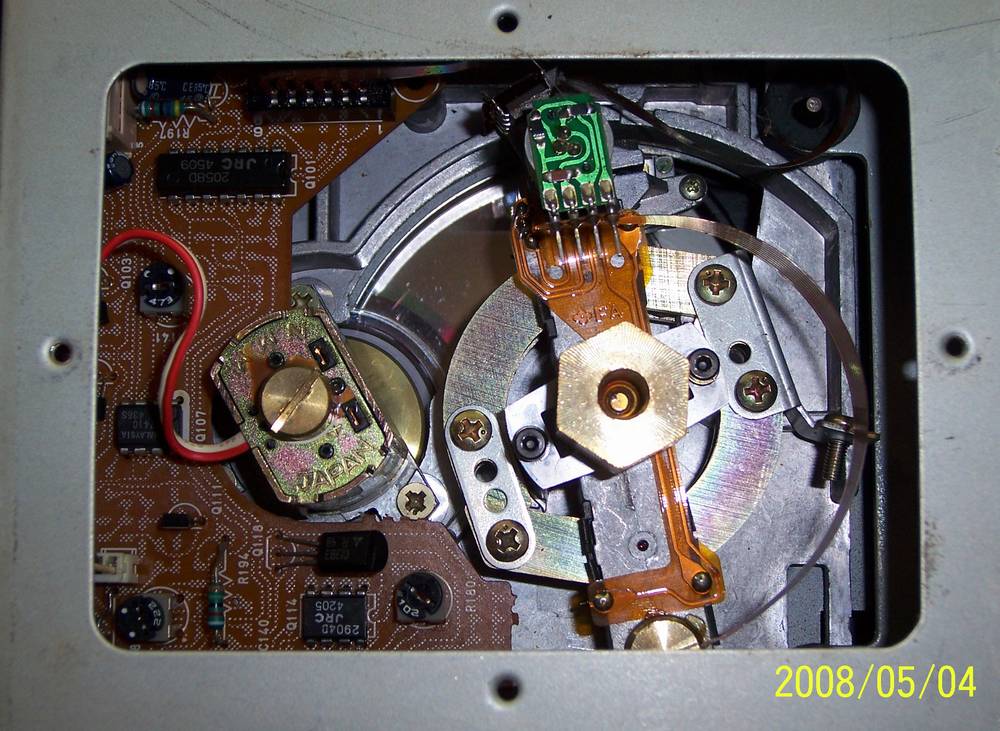

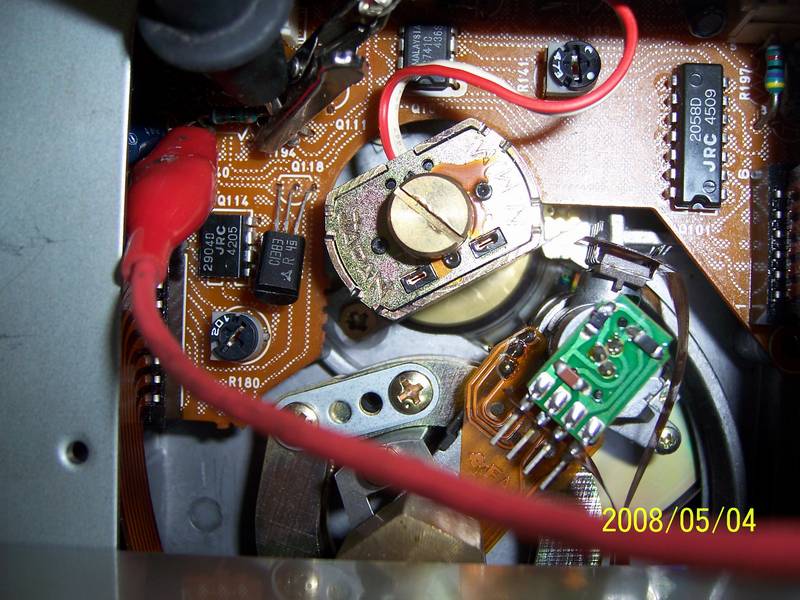

刚拍的马机cd84上的cdm1底视图

jyec

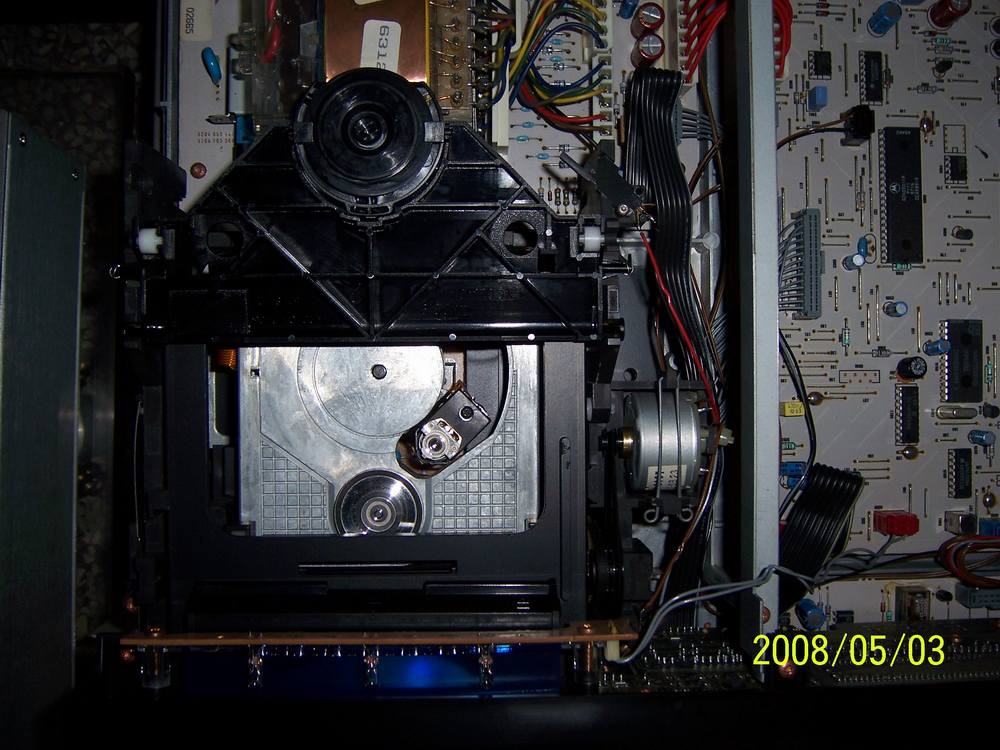

马兰士cd80的cdm1mkII

woaini19840804

[s:15]

高斯静

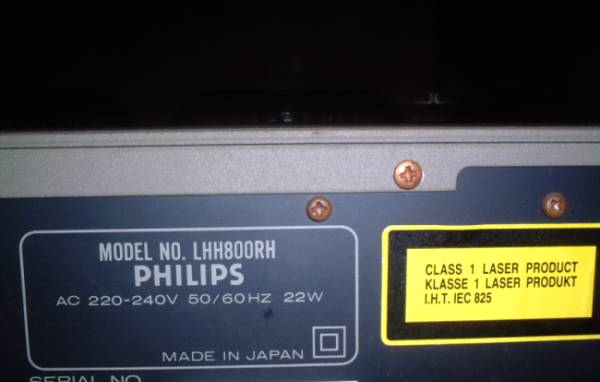

马CD11MKII带平衡输出，220V的[s:97]

昌仔

原帖由 xiaoshen 于 2008-2-11 16:26 发表
LHH系列根本没有220V的,吹牛都不会吹!!!!!!!!!!!!!

[s:6] 兄弟见得少别说人家吹牛,我弟有台,原箱还在,真有不成吃了它!插头是欧规双圆插,请记好了!

昌仔

[s:15] 我玩REVOX C221 CD机,也是M4PRO头,92年德国制专业机,音乐感好得很,STUDER727都不如它,而且专业版带平衡输出,好玩好用,就是没遥控讨厌.

bbq2005

原帖由 xiaoshen 于 2008-2-11 16:26 发表
LHH系列根本没有220V的,吹牛都不会吹!!!!!!!!!!!!!

[s:21]
