瑟顿Sugden A21SE 甲类功放，成色新！（已出）

guhuozai · 发表于 2016-4-2 22:21

马上注册家电论坛，众多有奖活动等你来参与！

您需要登录才可以下载或查看，没有账号？注册

x

本帖最后由 guhuozai 于 2016-8-14 13:10 编辑

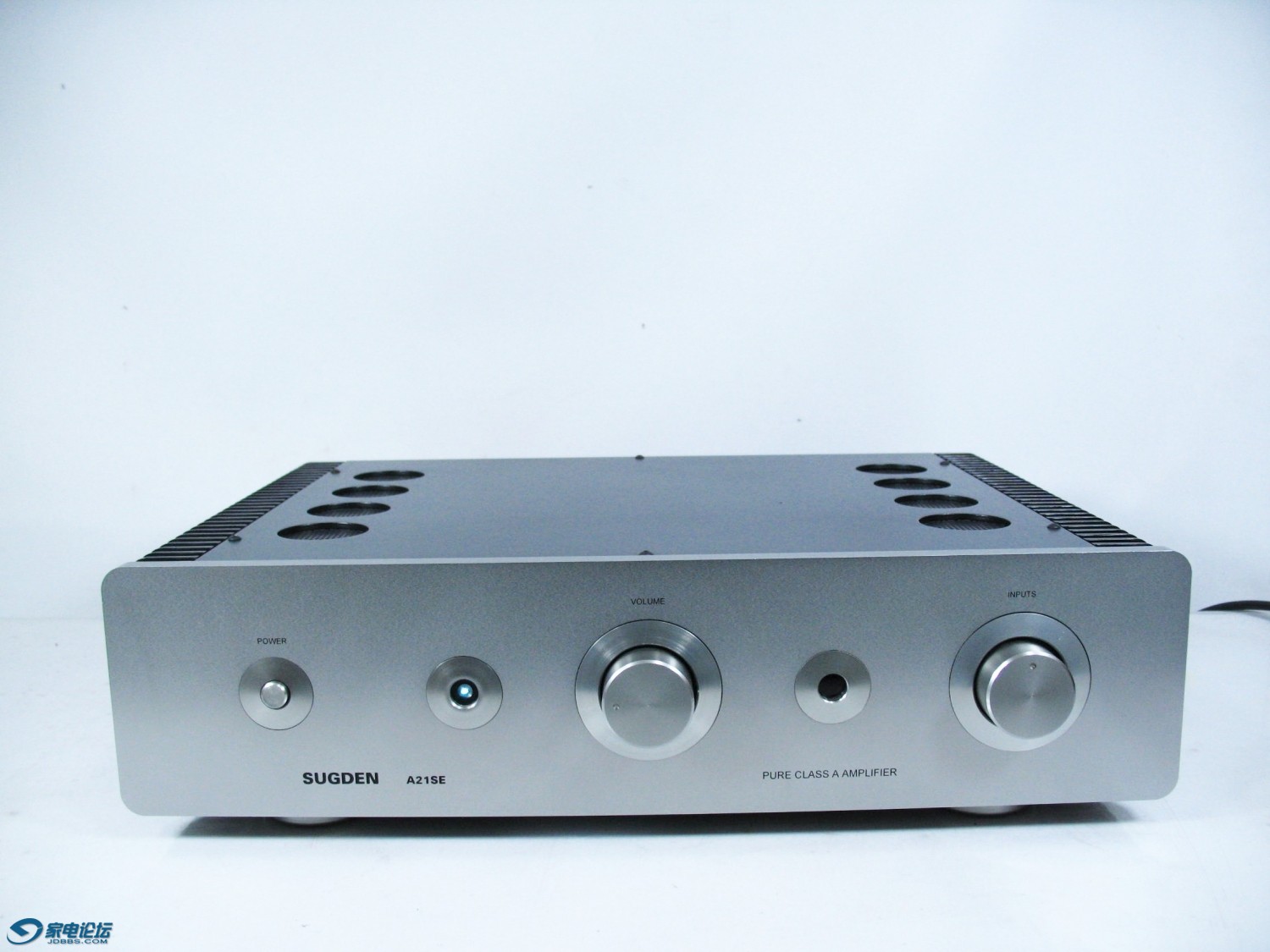

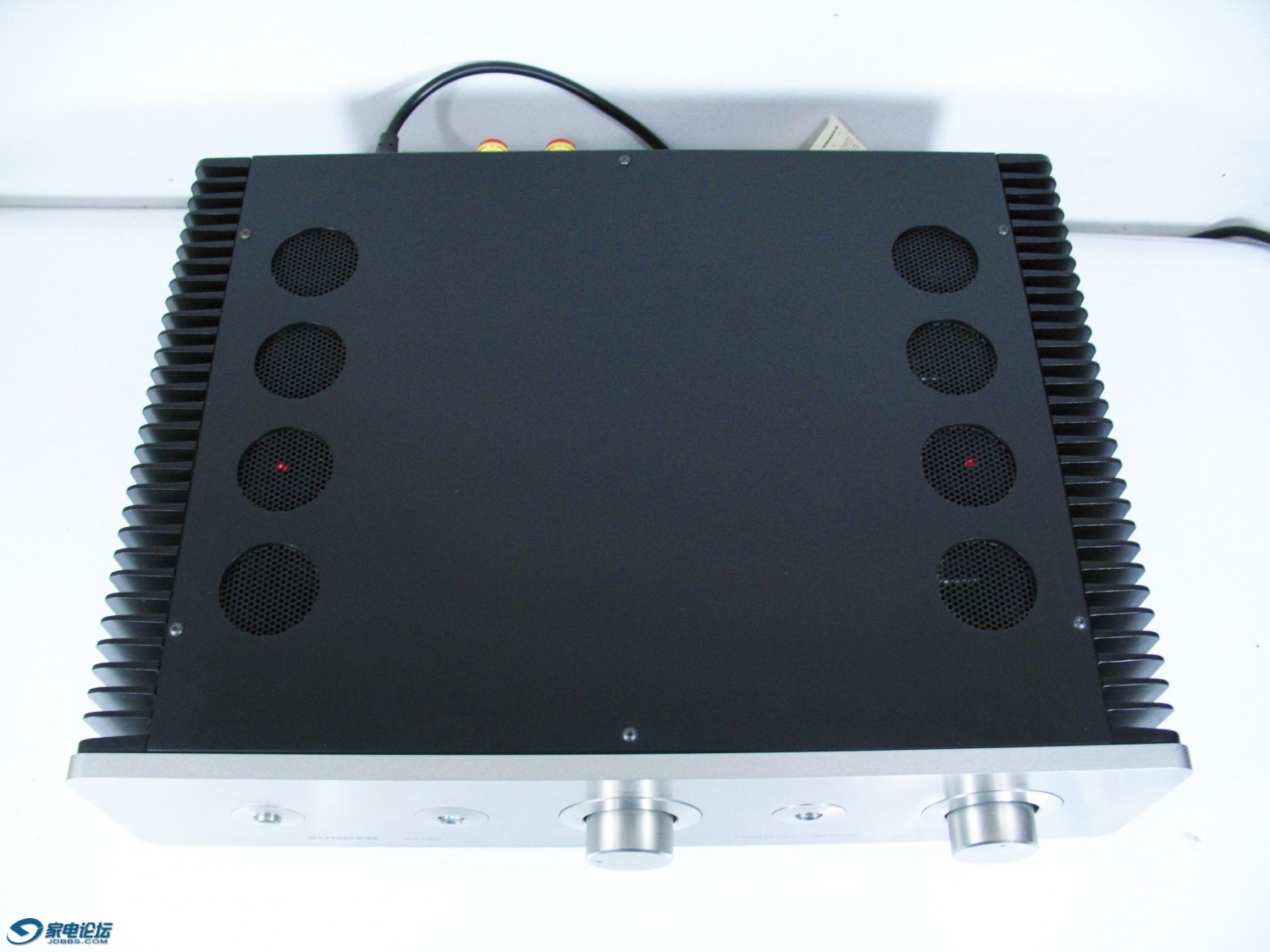

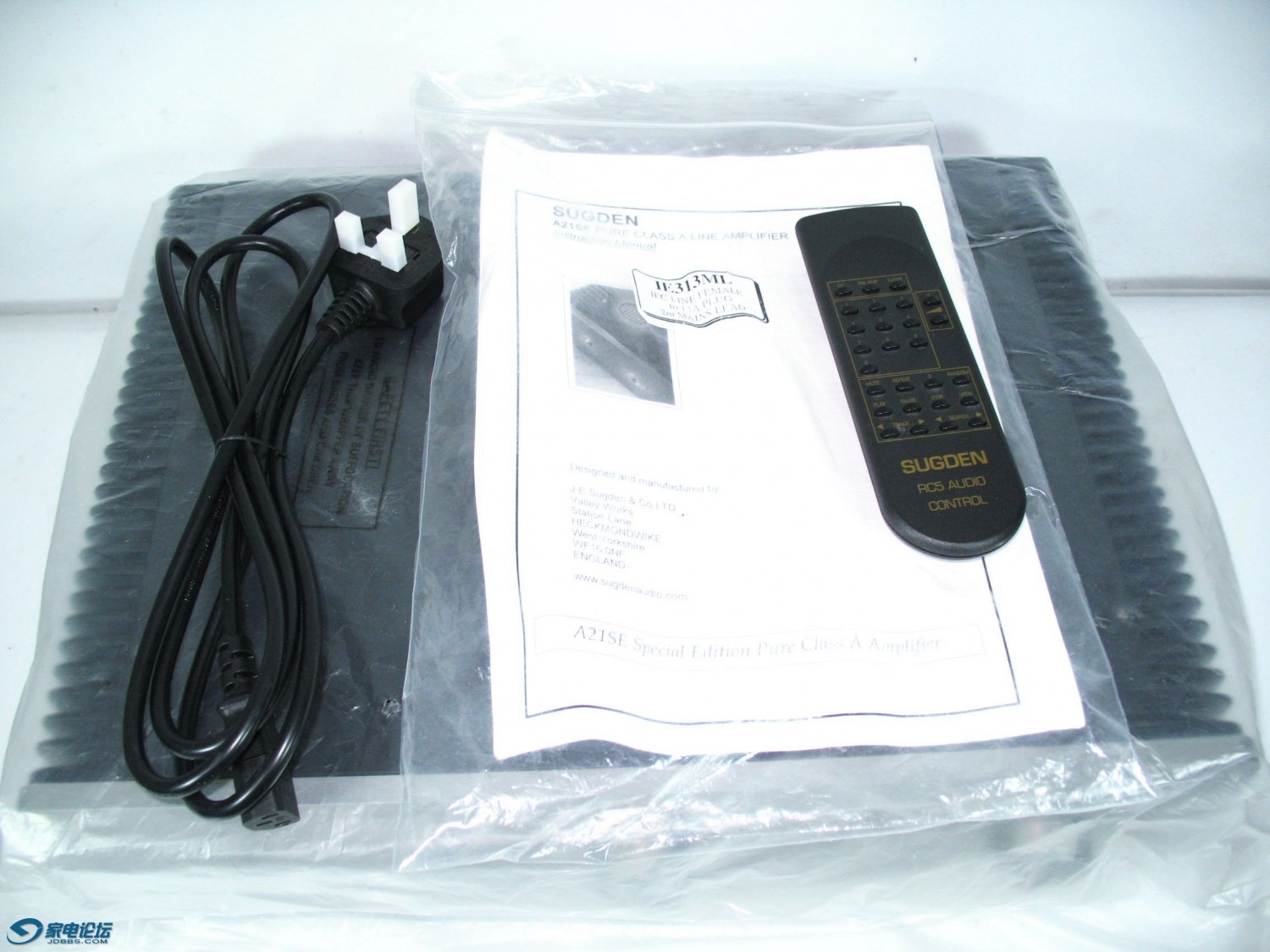

原装无修，成色新静！原包装、遥控器、电源线、说明书，甲类30w，一代名机，甲类放大器的开山鼻祖。。。00元北京自提优先13311059879，淘宝：https://item.taobao.com/item.htm ... XOk&id=529221482497

guhuozai · 发表于 2016-4-2 22:27

Sugden Audio A21SE Special Edition Pure Class ‘A’ Integrated Amplifier

Post on July 8, 2009 by admin tagged: A21SE, Amplifier, Class A, Neophonics, Sugden
A21SE FRONT1 WS

Sugden A21SE Special Edition Remote Volume Pure Class ‘A’ Integrated Amplifier (Line) – 30 Watts

The A21SE Integrated Amplifier is a single ended solid-state pure class ‘A’ design.  The pre-amplifier has a cascode input stage, current feedback with the input and output being in phase.  Other design points include high input impedance, high voltage gain in the first stage with low distortion, wide bandwidth, low noise and very low output  impedance.  Left and right line stages have current shunt power supplies from a dedicated transformer winding.  The input signals are relay switched reducing signal paths to a minimum.
The A21SE is capable of producing music in its most natural and organic form.  Free from crossover distortion, power can be delivered smoothly without the high frequency ‘pain’ associated with so many transistor amplifiers.

Facilities:

Inputs – Five line level operated by relays.

Ouputs – Pre-out (variable), tape out (fixed), one pair of stereo multi-way binding posts and LTVS supply for A21SE Stage One Phono Amplifier.

Remote Control – Volume up/down.

Specifications:

Line Input sensitivity – 110mV for maximum output.

Power Output – 30 watts pure Class ‘A’ into 8 ohms both channels driven.  40 watts pure Class ‘A’ into 4 ohms both channels driven.

Frequency Response – 20Hz to 20kHz +/- 0.5dB.

Bandwidth – 12Hz to 141kHz +/- 3dB.

Signal to Noise – >84dB.

Packed Weight – 14 kgs.

Dimensions – 115mm x 430mm x 360mm (HWD).

Recommended Retail Price – AUD$4,295.00.

E. & O. E.

A21SE FRONT2 WS

A21SE COMBO GRAPHITE WS

Sugden A21SE Remote Volume Pure Class ‘A’ Integrated Amplifier (Line) & Sugden CD21SE Compact Disc Player – Graphite finish.

A21SE INTERNAL - 1 WS

A21SE INTERNAL - 2 WS

A21SE REAR WS
