Sonic Frontiers胆机玩家俱乐部 !

BJB

顶。。。。。

[ 本帖最后由 BJB 于 2008-12-29 18:24 编辑 ]

筑和

交易区新帖推荐

近来冷清啊。。。。。。。。。

新景的大花猫

我用的是前卫T3的转盘，有知道它用的啥光头的吗？！

极品天籁

前卫，有合并机吗？或石机吗？？？

梁山伯

顶一下啊，前卫150W的合并机 有吗？

mobilest

交易区新帖推荐

好顶[s:20] [s:20]

BJB

没朋友来谈谈前卫的SFCD1？这机器不错！

VictorWang

SF Line3 配 Goldmund Logos Mini+Sub 中，非常搭配[s:95]

mobilest

轉貼兩篇關於Line 3的資料。


第一篇︰
ssj 初級會員 台北地區 發表文章數：6 2002/11/04 12:06:50

『以下為我與sonic froniters/nick mail about line 3 tube match :

「Subject: Re: How to match pair in the Line-3 」
LV1/V2 gain stage - these need to be gain matched and must be low noise
LV2/V1 - not in signal path, regulators, can influence gain
the rest - cathode followers, no gain so no matching necessary
LV1/LV2 and V1/V2 interact with each other. In preamps matching is gain
matching, and is easily done with many tubes on hand. If not, gain matching
can be done through the use of the balance control on the front
panel/remote. There's really nothing wrong with this, but people don't seem
to like the idea of the tubes themselves not being gain matched. The net
result is the same.
Phase balance is a different story, and is important when using balanced
connection (does not affect SE). Since it is very hard to find two tubes
with four identical sections in them, we've incorporated a balance control
for the two halves within each tube - it's the trimpot in each channel that
can be seen with the cover off. Disconnect outputs, feed a 1 kHz sine wave
through a generator or test CD, set volume to 78 or thereabouts, measure AC
voltage across XLR output pins 1-2 and compare with voltage across pins 1-3.
Rotate trimpot until they're both equal. (A THD analyzer is the real way,
but I'm assuming it's not accessible.)

Nick 』


第二篇︰

CZY 初級會員 新竹地區 發表文章數：18 2002/11/07 5:04:48

『轉貼一些Line3的電路分析︰
Its input stage is a differential amplifier consisting of one 6922 twin triode per channel, with an AC balance control between its cathodes. This control's wiper is connected to the plate of a 6GH8 pentode/triode tube's pentode section (more about its triode section later). This pentode functions as a constant - current source for the input differential pair and is connected to a regulated -125-volt supply. The plate outputs of the differential pair are connected through 12-kilohm plate-load resistors to a regulated 176-volt supply; each input triode conducts about 4.7 milliamperes.

From the input stage's plates, signals are capacitor-coupled to the output stage, which is configured as a cathode follower with a constant-current source. In this case, the cathode follower consists of paralleled halves of two 6922 dual-triode tubes while the constant current source uses the other halves of these tubes, also in parallel. Each channel therefore uses four 6922 dual-triode tubes, two per signal phase. This stage receives power at +125 and -125 volts from dedicated voltage regulators. The signal is directly coupled from the cathodes of these 6922s to the output. 』

它的输入阶段是差分放大器由一个6922双三极管，每通道，交流平衡与控制之间的阴极。这种控制的雨刷连接到板的6GH8 pentode /三极管管pentode节（更多有关其三极管一节） 。这pentode职能不断-电流源的输入和差分对连接到调节， 125伏的电源。板产出差分对连接通过12千欧姆板负载电阻调节176伏的电源;每个输入三极管进行大约4.7毫安。从输入级的板，信号电容耦合到输出阶段，配置为阴极跟随一个恒流源。在这种情况下，阴极跟随由两个平行半6922双三极管管而恒流源使用其他半这些管，也平行。因此，每个通道都使用4个6922双三极管管，两个百分点的信号阶段。这一阶段收到功率125和-125伏特由专门的稳压器。信号直接耦合从阴极这些6922s输出。 』

[ 本帖最后由 mobilest 于 2009-5-13 18:04 编辑 ]

mobilest

The cathode-follower output stage consists of two dual triodes per signal phase per channel for a total of eight 6922s! One triode half of each 6922 is paralleled with that of another 6922 for low output impedance while the second half of both serves as a paralleled constant current source. In addition, a pair of 6U8As regulates AC bias of the input stage and serves as an error amp to sense and correct phase balance in the output stage. DC servos are used around the output stage and no output coupling capacitor is used. This results in a very low output impedance, especially for a tube preamp: 45 ohms single-ended, 90 ohms balanced.

阴极跟随输出级包括两个双triodes每每声道信号相位共8 6922s

一个三极管一半平行每6922与6922的另一个输出阻抗低，而下半年都充当平行恒流源。

此外，对交流的偏6U8As规定的投入阶段，是一个的放大器，以理智和正确的相位平衡的输出级。

直流伺服周围使用的输出阶段，并没有输出耦合电容的使用。这样的结果是非常低的输出阻抗，特别是对一个管前置： 45欧姆单端， 90欧姆的平衡。

[ 本帖最后由 mobilest 于 2009-5-13 18:00 编辑 ]

mobilest

http://www.partsconnexion.com/

In the meantime, for detailed info on ANY of our upgrade modifications, or on replacement tube sets, please e-mail Chris Johnson (cjohnson@partsconnexion.com) directly.  He will respond to you personally, with the details you request.

[ 本帖最后由 mobilest 于 2009-5-17 11:10 编辑 ]

mobilest

这是一个网友的问题 大家瞧一下
I feel they are better than Sovek 6922 in some ways: warm midrange, 不刺耳，relaxed, detailed bass... but lacks of trebles---dumb! I want to try other tubes, but SF line 1 needs 6 tubes together!! So it will be always too expensive for me to try better tubes like Mullard or TFK... Why Sonic Frontiers design preamp like this?? Bad idea for users! Can you tell me what benefits it will have to use six tubes in tube preamp like SF's? Generally what's the difference between a tube pre amp w/ less tubes and a tube pre amp w/ more tubes? Have a nice weekend!

There is nothing wrong with SF design, it is just the taste of Chris Johnson make SF amps sound like that.
By the way, I think put all the good parts into an amp can not make the amp sound good. Tuning is also important .

They are marvelous for tubes, a wide soundstage, great bass and heavenly .... Easily driven with Sonic Frontiers SF80. Work well in average sized living room (14x20). .... thought of making them, to fine tuning and adjusting design details. ...

helped me finding also a reasonable preamplifier by tuning a SFL-2 Sonic Frontiers.

[ 本帖最后由 mobilest 于 2009-5-18 23:52 编辑 ]

斯奔达克斯

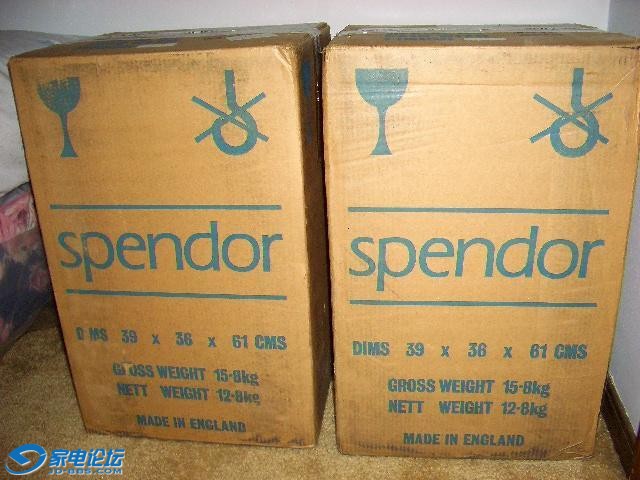

目前是arcam delta270+sonic frontiers SFL-1+sonic frontiers SFS-40推雨后初晴P3，做替补的是700美金拍下的全新未开封的89年-92年间生产的spendor 2/2.

BJB

[s:20]
刚入手SF Line 1搭ARC后级，机器很新原机配管。前家跟机管一直没用，也很新。原试听几天，感觉动态不错，较细腻。增益明显比ARC小，请教兄弟们说说换什么牌子管较合拍而保持原机风格？

[ 本帖最后由 BJB 于 2010-2-9 01:52 编辑 ]

szqin

加拿大 Sonic Frontiers前卫EL84x8 合并式胆机 如何
