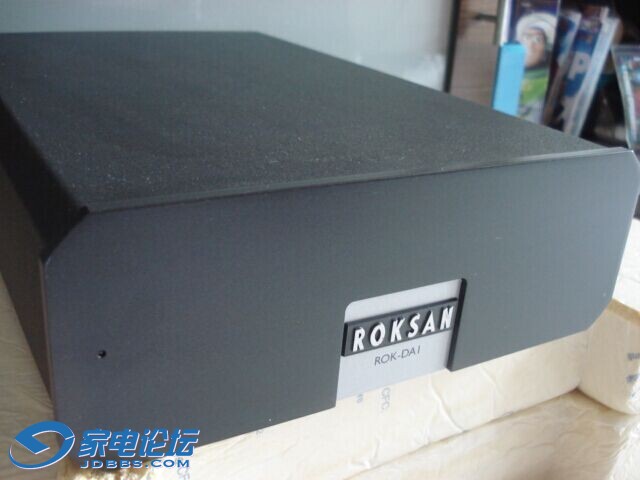

ROKSAN ROK-DA1 200,000yen(around the 1992 time)

麦景图275 · 发表于 2015-1-16 02:14

您需要登录才可以下载或查看，没有账号？注册

x

[size=-1]Form	[size=-1]Digital analog converter
[size=-1]Input	[size=-1]Coaxial digital: One line
[size=-1]Output	[size=-1]Analog: One stereo
[size=-1]Sampling frequency	[size=-1]32kHz, 44.1kHz, 48kHz (automatic correspondence)
[size=-1]Dynamic range	[size=-1]97dB
[size=-1]S/N ratio	[size=-1]126dB
[size=-1]S/(N+D) ratio	[size=-1]94dB
[size=-1]Phase deviation	[size=-1]±0.5 degree
[size=-1]Channel separation	[size=-1]100dB or more
[size=-1]DC offset	[size=-1]Less than ±1mV
[size=-1]Output power	[size=-1]2.0Vrm
[size=-1]Power source	[size=-1]AC220V, 50Hz/60Hz
[size=-1]Power consumption	[size=-1]A maximum of 10W
[size=-1]Dimensions	[size=-1]Width 215x height 80x depth of 325mm
[size=-1]Weight	[size=-1]3kg
[size=-1]Option	[size=-1]External power unit ROK-DS1 (280,000yen)
