南宁出:Pioneer /先锋CS-880 CS-E700号角音箱君子HL5脚架

云留迹 · 发表于 2014-9-3 16:10

马上注册家电论坛，众多有奖活动等你来参与！

您需要登录才可以下载或查看，没有账号？注册

x

1、先锋CS-880号角音箱：9000元；

2、先锋CS-E700号角音箱：4600元；

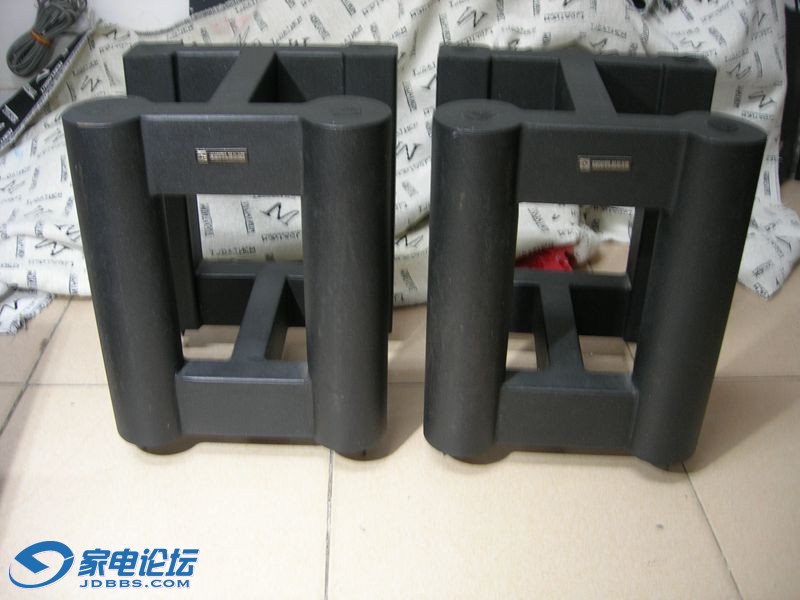

3、君子HL5脚架：1100元；

监听级的先锋CS-E700型号角音箱，是700型的改进型，高音为扩散型铝镁合金号角，中音为5寸羊毛纸盆喇叭，低音为12寸纸盆。音箱无摩无修，难得从未打开过单元和分频器。

参数见：http://audio-database.com/PIONEER-EXCLUSIVE/speaker/cs-e700-e.html

Scheme

3 ways, 3 speakers, a sealing scheme, and a bookshelf type

Using unit

For low-pass: 30cm cone type
For mid ranges: 12cm cone type
For high regions: Horn type

Impedance

8ohms

Play frequency band

35Hz - 20000Hz

Output sound pressure level

93.5dB/W

The maximum input

60W

Cross over frequency

500Hz, 5000Hz
At the time of a multi-amplifier using

Two ways :	500Hz - 1000Hz
Three ways :	500Hz - 1000Hz 4000Hz - 6000Hz

Dimensions

Width 380x height 660x depth of 300mm

Weight

16kg

该音箱有分频输入选择，可单分频输入，双分频输入，也可三分频输入，极其难得！

先锋CS-880体积庞大， PD-50+PH-50驱动头加号角，8寸中频，15寸低频，FB纸盘。先锋在TAD之前的高端型号，国内极少，除上家更换接线柱外，无摩无修。上家直接日本回来。

参数见：http://audio-database.com/PIONEER-EXCLUSIVE/speaker/cs-880-e.html

Scheme	3 ways, 3 speaker bass-reflex scheme, and a floor type
Using unit	For low-pass: 38cm cone type For inside low-pass: 20cm cone type For mid-high ranges: Sectoral-horn type (PD-50+PH-50)
Impedance	8ohms
Play frequency band	30Hz - 21000Hz
Output sound pressure level	94dB/W/m
The maximum input	100W
Cross over frequency	450Hz, 1400Hz
Dimensions	Width 515x height 875x depth of 400mm
Weight	44.5kg
