Scheme 2 ways, 2 loudspeakers, a sealing scheme, and a bookshelf type

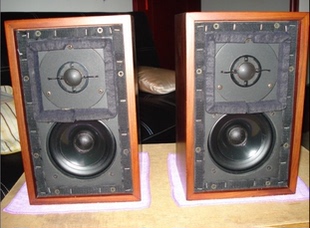

Using unit For low-pass: 11cm cone type (B110C)
For high regions: 1.9cm dome shape (T27)
Frequency characteristic 70Hz-20kHz±3dB
59Hz -6dB
Impedance 11ohms
Output sound pressure level 82.5dB / 2.83 Vrms/m (50Hz - 20kHz)
Maximum permissible input 30W
Internal volume 5.5L
Dimensions Width 190x height 304x depth of 162mm
Weight 5.0kg |
|
