美国 MONOPRICE各类线材：1.4版HDMI线，12、14、16AWG专用入墙喇叭线、光纤、低音炮线

不远的小店 · 发表于 2012-7-22 08:48

马上注册家电论坛，众多有奖活动等你来参与！

您需要登录才可以下载或查看，没有账号？注册

x

本帖最后由不远的小店于 2012-7-22 09:00 编辑

http://item.taobao.com/item.htm?id=15404745806

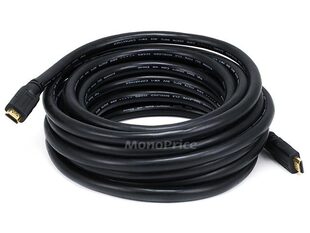

7.5米HDMI， MONOPRICE最好的HDMI、With Ethernet 、真正1.4版，支持3D、2160P
1.4版HDMI线 High Speed  HDMI  Cable With Ethernet 线外表直径12mm，线丝直径22AWG（此数值越小，线丝越粗；同样材质情况下，线丝越粗阻抗越小。多数HDMI线达到24AWG就已在吹嘘）
用于蓝光DVD、HTPC、高清机顶盒、游戏机等连接投影仪，或功放连接投影仪

1080p Resolution - The High Speed HDMI Cable With Ethernet has sufficient bandwidth to transfer 1080p video signals between 1080p rated source and sink (display) devices.
· HDMI Ethernet Channel       HDMI以太网通道
The HDMI  Ethernet Channel provides 100 Mbps, full-duplex Ethernet traffic along the HDMI? cable, allowing a wired or wireless Ethernet connection on one device to be propagated to other devices. Note that for this feature to be functional, all pieces of equipment between the Ethernet source and the destination must support the HDMI? Ethernet Channel feature.
·Audio Return Channel 音频回传通道- Normally, your HDMI? cable carries audio information along with the video from a source device (e.g. blu-ray player) to the sink device (display/television). Often times this goes through an AV receiver to drive a home theater audio system. The Audio Return Channel is primarily used to send the audio signal generated by the television when its internal tuner is used, back to the AV receiver, so that you can use your home theater audio system when watching television signals.
·3D - 3D is the latest rage for both home theater and gaming. A High Speed HDMI? Cable With Ethernet is capable of handling the high bandwidth requirements of 3D signals.
4K - The 4K resolution is 3840 x 2160 pixels @ 24 Hz, which is four times that of a 1080p display and the same resolution used by state-of-the-art Digital Cinema systems. A High Speed HDMI? Cable With Ethernet is capable of handling the high bandwidth required for 4K support.
Deep Color - The Deep Color feature provides a minimum of 8-bits per color element (24-bits total), providing for a total of over 16 million color variations. Other versions of Deep Color allow for up to 16-bits per element, for a total of 48-bits and over 281 trillion color variations, which really makes your video images come to life!
x.v.Color  -
x.v.Color is a promotion name given to the products that have the capability to realize a wide color space based on the xvYCC specifications and is a trademark of Sony Corporation. Currently, only AVCHD and Playstation 3 devices support x.v.Color?.
High Definition Audio - HDMI supports a full range of high definition audio types, including SA-CD, DVD-Audio, DTS-HD Master Audio, and Dolby TrueHD.

不远的小店 · 发表于 2012-7-22 08:51

本帖最后由不远的小店于 2012-7-22 08:52 编辑

2*16AWG，入墙喇叭线
UL、CUL认证
CL2 rated
线体：高纯度无氧铜
线径规格：16AWG
线丝直径：0.254毫米+/ - 0.008
外径：6.2毫米
类型：多股线缠绕
外套颜色：白色
内部管道包括红色和黑色外套。
撕裂线：尼龙线
导体电阻（20°C）最大：14.6Ω/KM
绝缘电阻（20℃）最小：0.75Ω/KM
Spark Test: 3.0KV/ Sec NOBREAKING
http://item.taobao.com/item.htm?id=16480579179&
