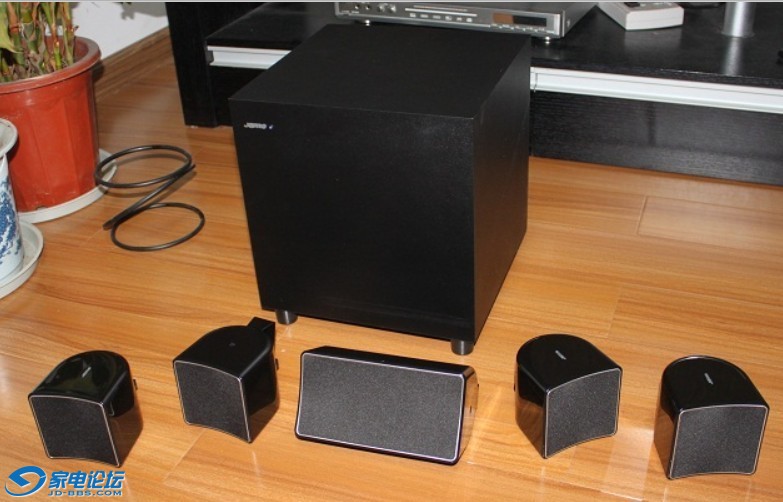

二、2007-2009年500英镑内最佳卫星影院尊宝a102详细介绍：
网上的信息基本都是英文的，大家将就看下吧：
A 102
Satellite Speaker
Design
We’re all familiar with the phrase “seen but not heard”. With the refined A 10 series, Jamo gives you the opportunity to experience exactly the opposite! These speakers may be small in size, but the sound quality they deliver is absolutely huge in scale—and pure in quality.
The A 102 satellite speaker is extremely compact, so it’ll be the sound, not the speaker that attracts attention. When mounted on the wall—using the brackets that are included—the A 102 can also be turned from side to side to direct the sound wherever you desire.
Technology
The A 102 is a 2-way, closed cabinet speaker. The 2-way configuration includes a .75-inch tweeter and a 3-inch woofer to add true surround sound to your favorite music and movies.
Both woofer and tweeter are integrated into a single unit, a technique that makes it possible to have a genuine 2-way system in an extremely small cabinet. Because the elegant A 10 speakers are incredibly small, it’s easy to integrate them into most domestic environments, no matter which room you choose.
The high-style Jamo A 102 loudspeaker is packed with high-performance features:
- A coaxial drive unit that sends all sound to your ears simultaneously
- Magnetic shielding to eliminate television interference
- Compact Neodymium magnets to concentrate magnetic force to the voice coil for cleaner sound
With its small, but highly functional presence, the A 102 is ideal for those who desire performance—and subtle beauty—from their home theater or iPod music systems.
System Type 2-way closed shielded
Woofer (mm/in) 76 / 3
Tweeter (mm/in) 19 / ¾
Power (W, long/short term) 60 / 80
Sensitivity (dB, 2.8V/1m) 86
Frequency Range (Hz) 150 - 20,000
Impedance (Ohm) 6
Weight (kg/lb) 0.7 / 1.5
Product dimensions (mm/in, HxWxD) 91 × 91 × 92 / 3.6 × 3.6 × 3.7
Overall dimensions (mm/in, HxWxD) 91 × 91 × 115 / 3.6 × 3.6 × 4.5
Finishes Black and White
前置是同轴单元，80w功率，阻抗6欧
A 10 CENCenter Speaker
Not Sold Individually, only available in complete 5.0 or 5.1 sets
Design
With its compact size and attractive shape that looks great with any new generation flatscreen, the A 10 CEN is the shielded center channel unit for the amazing A 100 series of home theater speakers. You’ll hear movie music, dialogue and effects come alive as never before.
This unobtrusive speaker has specifically been designed to work with A 102 compact satellites. Its high-style Danish design makes the A 10 CEN a suitable match for nearly any room.
Technology
Both woofer and tweeter are integrated into a single unit, a technique that makes it possible to have a genuine 2-way closed system in an extremely small cabinet. Because the elegant A 10 CEN is incredibly small, it blends seamlessly into most domestic environments.
The A 10 CEN speaker is equipped with the same driver configuration as the
A 102 satellite speaker. This ensures perfect integration with the A 102 and optimal timbre matching for an accurate sound stage. If the center speaker is placed in its tiltable wall mounting system, it enables you to aim the sound output directly towards the listening position.
Despite the small size of A 10 CEN it features a 3-inch woofer and a .75-inch tweeter to reproduce mid- and upper range frequencies with full fidelity. The result is very natural sounding vocals and instrumentation quality—which is essential, as the center speaker reproduces the dialogue in a movie.
The high-style Jamo A 10 CEN is packed with high-performance features:
A coaxial drive unit that sends all sound to your ears simultaneously
Magnetic shielding to eliminate television interference
Compact Neodymium magnets to concentrate magnetic force to the voice coil for cleaner sound
This is one center channel that puts you squarely in the middle of your favorite films; the A 10 CEN from Jamo.
System Type 2-way closed shielded
Woofer (mm/in) 76 / 3
Tweeter (mm/in) 19 / ¾
Power (W, long/short term) 60 / 80
Sensitivity (dB, 2.8V/1m) 86
Frequency Range (Hz) 150 - 20,000
Impedance (Ohm) 6
Weight (kg/lb) 1.1 / 2.4
Product dimensions (mm/in, HxWxD) 91 × 174 × 92 / 3.6 × 6.9 × 3.7
Overall dimensions (mm/in, HxWxD) 91 × 174 × 127 / 3.6 × 6.9 × 5.0
Finishes Black and White
中置也是同轴单元，80瓦，阻抗6欧
A 10 SURSurround Speaker
Not Sold Individually, only available in complete 5.0 or 5.1 sets
As the elegant A 102 speakers are incredibly small it is easy to integrate them into most domestic environments, no matter which room you intend to listen in. A 10 SUR is well suited as surround speaker.
The A 10 SUR surround speaker is extremely compact and so it’ll be the sound, and not the speaker, that will attract attention. When mounted on the wall on the supplied wall brackets the speaker can also be turned from side to side.
System Type Fullrange closed
Woofer (mm/in) 76 / 3
Power (W, long/short term) 60 / 80
Sensitivity (dB, 2.8V/1m) 86
Frequency Range (Hz) 150 - 15,000
Impedance (Ohm) 6
Weight (kg/lb) 0.7 / 1.5
Product dimensions (mm/in, HxWxD) 91 × 91 × 92 / 3.6 × 3.6 × 3.7
Overall dimensions (mm/in, HxWxD) 91 × 91 × 115 / 3.6 × 3.6 × 4.5
Finishes Black and White
环绕是全频单元，80瓦，阻抗6欧
SUB 210
SubwooferAvailable in the U.S. in black finish only
White ash version not sold separately - available in theA 102 HCS 6system only.With a new design, the Jamo SUB 210 subwoofer is more compact than any of the predecessors in its class, offering easier placement in today’s living environment.
This Jamo SUB 210 subwoofer has a 200W amplifier and long-throw 8” woofer in a bass-reflex-enclosure, which gives it a level of performance unequaled in its class.

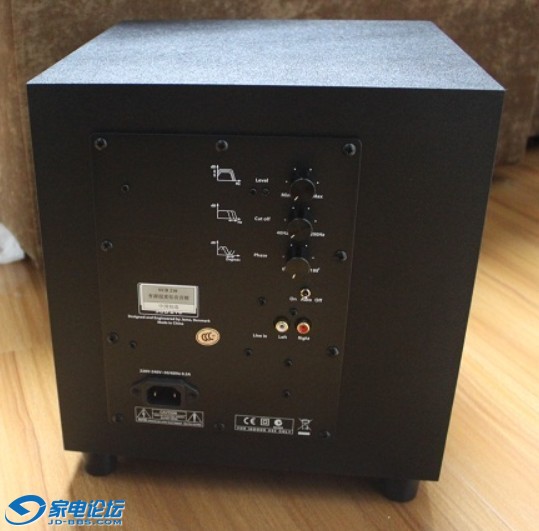

The auto-on-off and controls for level, cut-off-frequency as well as phase, together with line-level-input make it very easy to integrate this subwoofer with any other TV/speaker/amplifier/receiver combination.
| System Type | Bass Reflex | | Woofer (mm/in) | 230 / 8 | | Power (W, long/short term) | 200 | | Frequency Range (Hz) | 38-200 | | Power Mode Switch | Auto / On / Off | | Variable Phase Control | 0 to -180 | | Crossover Frequency | 40 - 200 | | Impedance (Ohm) | 22k | | Weight (kg/lb) | 7,5 / 16.5 | | Overall dimensions (mm/in, HxWxD) | 313 x 283 x 305 / 12.3 x 11.1 x 12 | | Finishes | Black, Wenge, Dark Apple, White Ash, High Gloss Black and High Gloss White | | Inputs | Left / Right line in | | Mains power / Standby power (W) | < 0,5 |
低音炮是8寸200w，带相位调节。
| 基本参数 | | 产品套装 | 音箱
| | 功放与音箱 | | 扬声器单元 | 卫星音箱: 采用0.75英寸高音单元;
采用3.0英寸低音单元.
中置音箱: 采用0.75英寸高音单元;
采用3.0英寸低音单元.
低音音箱: 采用8.0英寸低音单元.
| | 音箱输出功率 | 前置音箱: 80W×4;
环绕音箱: 80W;
低音音箱: 200W
| | 音频端口 | RCA接口
| | 频率响应 | 环绕音箱: 150Hz-20kHz;
中置音箱: 150Hz-20kHz;
低音音箱: 40Hz-150Hz.
| | 音箱材质 | 木质
| | 声道数 | 5.1
| | 其他参数 | | 产品尺寸 | 环绕音箱: 290×595×150mm;
中置音箱: 210×435×150mm;
低音音箱: 438×452×438mm.
| | 产品重量 | 环绕音箱: 0.7kg;
中置音箱: 1.1kg;
低音音箱: 8.4kg.
| | 其它参数 | 灵敏度：前置音箱:86dB,环绕音箱86dB
|
设计师：它们单个都很漂亮，放在一起，它们将给您提供全新而令人兴奋的视觉体验。
在美感型音箱的背后是获奖的丹麦设计师Smedegaard and Weiss的创新设计，她们是两位具有将技术和美感融为一体能力的国际性女性设计师，
他们确保产品具有斯堪的那维亚的风格，简洁、功能性和充满灵性。美感型音箱是经过小心雕琢的令人兴奋的产品。
技术特点：A 10系列的独特就在与它的同轴驱动单元，确保了来自两只驱动单元的声音输出始终都能在同一时间抵达聆听位置，无论您是在离轴的纵向还是横向聆听，创造出一种巨大的、和谐悦耳的声音，精确的难以置信。这是尊宝公司最小巧和最简朴的“家庭影院系统”，但是无论从声压还是音质方面，您都可以确信，它是同尺寸的音箱系统以往从未达到的性能水准！
Ａ １０２卫星音响是系统里最小巧的，可以用专用支架安装在墙壁上，它可以从一侧转向另一侧；中置音箱与卫星箱具有相同的驱动单元结构，如果把它放在可倾斜的墙面安装系统中，它能让您把声音输出直接对准聆听位置；超重低音音箱有一只２００Ｗ的放大器以及一只装在低音反射槽中的８英寸长冲程低音单元，使得这款音箱的性能无以伦比。
当声音穿越在房间时，所有五只主音箱都用相同的驱动单元结构，能确保最佳的音质平衡。无论是通过线路输出还是音箱电平输出连接到您的功率放大器上，超重低音音箱都能与您的电子设备完美的融合。吸引人们注意力的是声音而不是音箱。
同轴驱动单元
一个同轴驱动单元，使中低音单元和一个高音一体化，能确保两个驱动单元具有相同的声学中心点。这意味着所有的频率将同时到达您的耳朵，也就是说具有理想的时间校准。
钕磁铁扬声器单元
钕是一种强磁材料，比普通磁铁的磁性强十多倍。由于磁铁可以缩小尺寸，它便能放置在扬声器单元的音圈之内，使磁力集中在音圈四周------恰到好处。这种小巧磁块的另一个优点是它在音箱内不占什么空间，这对于迷你型音箱来说十分重要。
防磁
通常当把一个扬声器近靠电视机的时候，驱动单元的磁铁会造成电视图片的失真。由于中置声道的音箱——为了实现图象和声音之间的一致性，它需要尽可能地被近靠电视机放置——必须具有防磁的功能来消除磁辐射。
[ 本帖最后由 黑暗的公正 于 2011-7-25 15:37 编辑 ] |
|
