与箱子搭配的是1万多的功放! 欢迎3万级的功放来PK
Basic Specifications2 ohms4 ohms8 ohmsWeight2 × 1700 W2 × 1500 W2 × 1100 W10 kg / 22 lbs
Main Features- Multiple Position Gain Switch (M.PGS)
- Intercooler® cooling system with front-to-rear airflow and easily accessible dust filters
- Improved low-end power bandwidth
- Link (loop-thru) output with XLR-type connector
- Extruded front panel for increased stability
- Bridged mono outputs in one Speakon® connector

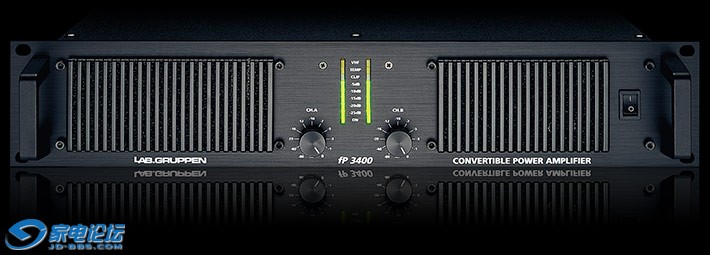

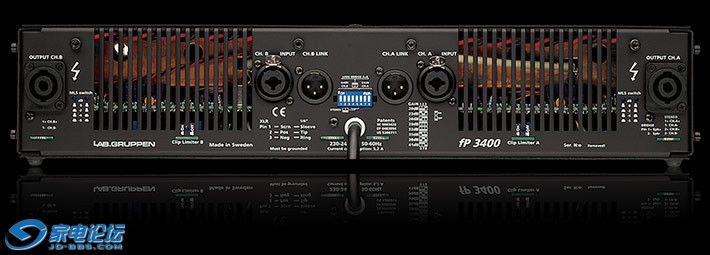

In addition to traditionally superb Lab.gruppen sonic performance, fP 3400 offers a full line of important features: Regulated Switch Mode Power Supply (R.SMPS™)
Switch-mode amplifiers are commonplace in today’s amplifier market. However, Lab.gruppen’s unique Regulated Switch-mode Power Supply (R.SMPS) technology offers a number of essential advantages that make it superior to other, seemingly similar power supply designs. The most important features are the precise regulation and the extreme power efficiency. The regulated power supply easily deals with high variations in the AC mains voltage: it can drop by up to 20% below its nominal level (e.g. to 180 V instead of 230 V) without affecting audio performance. The power supply is also exceptionally efficient, with only a fraction of the energy from the AC mains is turned into heat. A regulated power supply also affords other sonic advantages, including better cone control while retaining the same fast response as a conventional power supply.
Multiple Position Gain Switch (M.PGS)To meet the demand for a flexible gain structuring in various system configurations, Lab.gruppen’s fP Series offers a multiple position gain switch. The maximum amplifier gain can be set to all industry standards: 20, 23, 26, 29, 32, 35, 38 and 41 dB.
Sophisticated protection circuitry, combining:- DC protection – Blocks infrasonic signals due to fault conditions
- VHF protection – Protects the loudspeakers from sustained (non-musical) very high frequency signals above the audible range.
- Thermal protection – Protects the amplifier from overheating. The protection warning indicators on the front panel illuminate before the protection process is initiated.
- AC protection – Shuts down the power supply if the line voltage is outside the operating voltage.
- Clip limiter – Prevents severely clipped waveforms from reaching the loudspeakers while maintaining full peak power.
Basic Specifications2 ohms4 ohms8 ohmsWeight2 × 1200 W2 × 840 W2 × 430 W8 kg / 18 lbs
Main Features- Multiple Position Gain Switch (M.PGS)
- Easily accessible dust filters
- Improved low-end power bandwidth
- Link (loop-thru) output with XLR-type connector
- Extruded front panel for increased stability
- Bridged mono outputs in one Speakon® connector

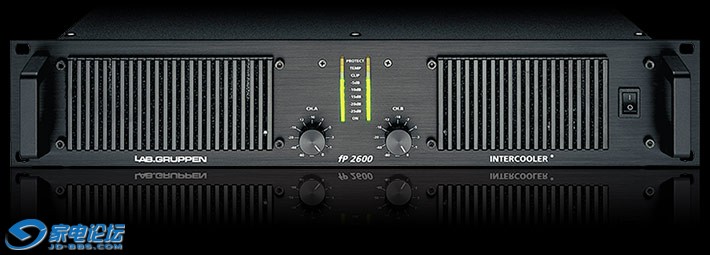

In addition to traditionally superb Lab.gruppen sonic performance, a full line of features make the fP 2600 an ideal choice for applications ranging from installations to high performance live sound systems: Regulated Switch Mode Power Supply (R.SMPS™)
Switch-mode amplifiers are commonplace in today’s amplifier market. However, Lab.gruppen’s unique Regulated Switch-mode Power Supply (R.SMPS) technology offers a number of essential advantages that make it superior to other, seemingly similar power supply designs. The most important features are the precise regulation and the extreme power efficiency. The regulated power supply easily deals with high variations in the AC mains voltage: it can drop by up to 20% below its nominal level (e.g. to 180 V instead of 230 V) without affecting audio performance. The power supply is also exceptionally efficient, with only a fraction of the energy from the AC mains is turned into heat. A regulated power supply also affords other sonic advantages, including better cone control while retaining the same fast response as a conventional power supply.
Multiple Position Gain Switch (M.PGS)To meet the demand for a flexible gain structuring in various system configurations, Lab.gruppen’s fP Series offers a multiple-position gain switch. The maximum amplifier gain can be set to all industry standards: 20, 23, 26, 29, 32, 35, 38 and 41 dB.
Sophisticated protection circuitry, combining:- DC protection – Blocks infrasonic signals due to fault conditions
- VHF protection – Protects the loudspeakers from sustained (non-musical) very high frequency signals above the audible range.
- Thermal protection – Protects the amplifier from overheating. The protection warning indicators on the front panel illuminate before the protection process is initiated.
- AC protection – Shuts down the power supply if the line voltage is outside the operating voltage.
- Clip limiter – Prevents severely clipped waveforms from reaching the loudspeakers while maintaining full peak power.
[ 本帖最后由 830327 于 2009-10-25 02:45 编辑 ] |
|
